The mottled skate (Beringraja pulchra) is a species of big skate, family Rajidae, in the Rajiformes order. It is found in the Sea of Okhotsk, the Yellow Seas along South Korea, and to as far as the East China Sea (Jeong, 1999; Kim et al., 2005; Ishihara et al., 2012). Skate fish, including mottled skates, are a popular catched, highly consumed, and commercially significant fish along west coast of South Korea. To differentiate the skate fish consumed in South Korea, mottled skate (B. pulchra) is categorised in Heuksan-do Hong-eo, and the red skate (Dasyatis akajei) is categorised as Hong-eo. Female mottled skates need to reach a minimum disc width of 63 cm to reproduce. Also, they have low annual production (comparing to other species) since they require a longer period for reproduction; hatching requires more than five months (Jo et al., 2010). The mottled skate is one of the most expensive fish on the market at a hundred thousand Korean won per fish. Currently to avoid over-exploitation, there is regulatory control for a seasonal catch (From 1 June until 15 July) and a limit on fish sizes (maximum disc width of 42 cm) is practiced to help skate fishery, which was slowly recovered.
There have been basic research on skate species regarding taxonomic studies and classification of common names (Jeong, 1999, 2000), characteristics of R. koreana egg capsules (Jeong & Kim, 2009), it's spawning periods (Kim et al., 2005), and comparative analysis on egg capsule shape (Ishihara et al., 2012). However, there was comparatively less research on the mottled skate (B. pulchra) regarding food habits (Hong et al., 2000), reproduction and spawning (Yeon et al., 1997), fishing characteristics by offshore long line fishery (Jo et al., 2011), characteristics of multi-embryo egg capsules and larvae shape (Jo et al., 2010), development on microsatellite markers (Kang et al., 2012), sensory characteristics of domestic mottled skate as affected by area caught, sex and fish weight (Jo et al., 2012), comparison of the nutritional properties (Jo et al., 2013) were exceptions. As the mottled skate is oviparous like hens, with females producing egg capsules almost year-round, it is hard to be produced in mass quantity like other fish species. Reproduction-related research of the mottled skate were conducted thus far since it regularly places multiple embryos into a large egg capsule and produces only a pair of egg capsules at a time every two weeks. Thus, the number of fertilized eggs is limited and it takes more than five months to develop fully formed offspring (Jo et al., 2010). In addition, unlike other fish that hatch in a large rearing tank normally within a month, the mottled skate needs a smaller tank to control environmental conditions and manage it until hatching.
This study aims to examine the spawning ecology of the mottled skate, caught along west coast of the South Korea, by analysing the formation of egg capsule in ovary and the number of fertilized eggs. Also, we investigated the peak spawning season to be able to control seasonal catch limits. We analysed the hatching rate at various water temperatures, hatching time, and the sexual ratio of hatching larvae using our artificial hatching device to obtain basic data for artificial propagation of the mottled skate.
MATERIALS AND METHODS
Forty female mottled skates, B. pulchra (average disc width of 72.4 ± 4.5 cm, average weight 7,460.3 ± 1,480.9 g) collected from offshore long line fishing and bottom trawlers in Heuksan-do and Daecheong-do, South Korea between 2008 and 2010 were used to examine the characteristics of natural mottled skate's spawning. The disc width and weight were measured up to 0.1 cm unit and 0.1 g unit. Samples were dissected to calculate the gonad mass up to the nearest 0.00 g. The gonadosomatic index (GSI) was calculated by the formula of (gonad weight / body weight) × 100 and the hepatosomatic index (HSI) by the formula of (liver weight / body weight) × 100. The gonads were dissected to examine the egg capsule development process in the ovaries and the number of fertilized eggs in each side of egg capsule right before spawning. We calculated the rate of egg capsule appearance and the number of fish with egg capsules, from the 706 sample females with the minimum disc width of 63 cm between February 2007 and March 2013, to investigate the peaked spawning season for the regulatory control of seasonal catch closure.
Forty egg capsules from six natural mottled skates [the disc width from 41.0 to 75.0 cm (average width of 65.1 cm), body weight from 1.1 to 8.1 kg (average weight of 5.5 kg)] collected from trawl lines around Heuksan-do, Jeollanam Province and reared in the indoor tanks at Taean Breeding Research Center of the West Sea Fisheries Research Institute were examined. We investigated hatching temperatures at four different temperatures: 8°C (data collected from 19 December 2010 until 11 August 2011), 13°C (16 December 2010 to 30 June 2011), 18°C (26 December 2010 to 3 June 2011), and natural water temperature (30 April 2010 to 27 October 2010). The egg capsules were reared in 200 L fibre-reinforced plastic circular tanks with a minimum water depth of 40 cm. The egg capsules were protected from floating matter using plastic baskets in the middle and the surface water layers in every rearing tank. Each tank had a 2 KW heater to keep water temperature constant and a 2 mm thick transparent acrylic panel to minimize temperature change or evaporation. The water in the tanks was treated with water filter cartridges of 50 μm and 3 μm and supplied through a hose and exchanged water four to five times a day. The light intensity was controlled dark to keep it lower than 0 lux at all times except for 30 minutes for observation each day. The sea water salinity was maintained as in natural sea water (32 psu) and the dissolved oxygen was regulated with 7 mg/L. A stocking density of ten egg capsules from each tank was examined for hatching time and rate.

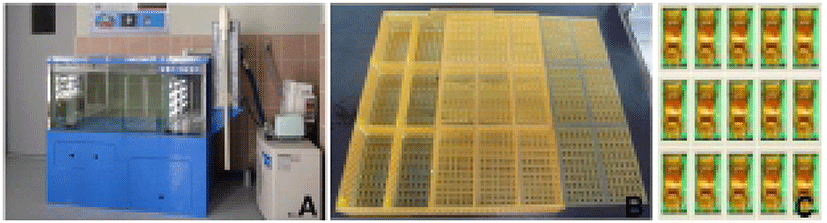

The artificial incubator, invented by the West Sea Fisheries Research Institute at National Fisheries Research and Development Institute (patent number 10-1142038), is designed for multi-embryo egg capsules and made from fibre-reinforced plastic with a size of 120 cm (L) × 70 cm (W) × 100 cm (H) and tank capacity of 350 L. Each egg capsule taken from the egg container [62.7 cm (L) × 48 cm (W) × 6.8 cm (H)] inside the incubator was managed in each container [20 cm (L) × 9 cm (W) × 6.0 cm (H)]. Eleven egg capsules (total length of 181.0±7.7 mm, total weight of 125.7±25.4 g) for hatching were collected from Daecheongdo, Incheon between 7 and 10 June 2012. They were delivered safely with oxygen vinyl packaging in a 10 kg styrofoam box. The incubator has a cooling system, a filtering system, and an oxygen supply system thus the water temperature is under control. Until the hatching moment, 120 L of water in the incubator was exchanged under a recirculating aquaculture system every ten days to avoid evaporation and salinity increasing. The water temperature was kept at 18.0 ± 0.3°C, salinity at 30.7 ± 0.8 psu, DO at 7.2 ± 0.4 mg/L, and the light intensity at natural light.

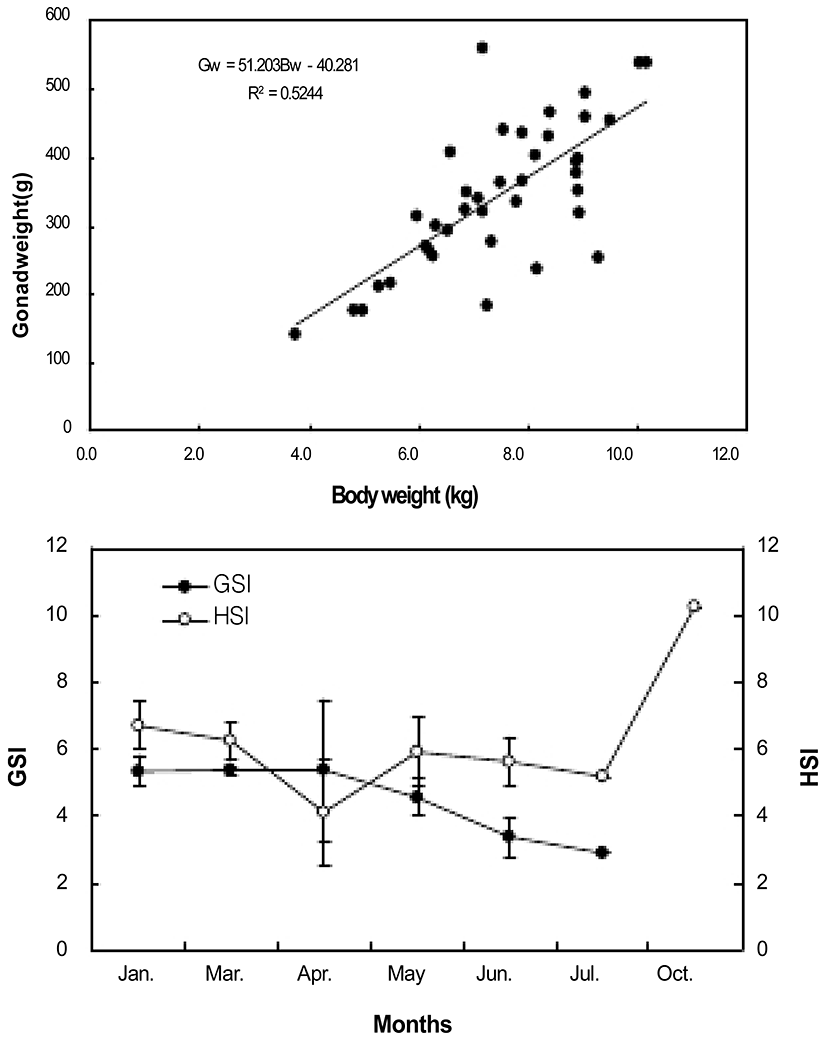

The gonadosomatic index (GSI) from the sample females tends to increase as the body weight increases. The relation of gonad weight (Gw) to the body weight (Bw) was presented by Gw=51.203Bw–40.281 (r2=0.5244) (Fig. 1). The GSI from the sample females from 2008 to 2010 was 5.3 between January and March, 5.4 in April, and then started decreasing since spawning increases to 4.6 in May. The HSI of female mottled skate started decreasing from January and showed its lowest point in April at 4.1, which shows that GSI and HSI are inversely correlated (Fig. 1). As the mottled skate is oviparous, it produces eggs inside its egg capsules developing egg yolks. The capsules on both reproductive tracts in the ovaries are kelp leaf-shaped, rectangular, and fibrous with a thick layer. Each capsule can contain up to seven eggs (Figs. 3, 4). The number of eggs in each egg capsule was as follows: one to seven (average 4) on the left reproductive tract and zero to six (average 4) on the right reproductive tract (Fig. 2). Forty females had 159 eggs on the left tract and 160 eggs on the right tract showing no significant difference (Fig. 2). Four eggs in the left egg capsule is the most common, occurring in 14 out of 40 cases (35%) and four to five eggs in the right egg capsule is the most common, occurring in 13 out of 40 cases (32.5%) (Table 1). The total number of eggs in both egg capsules in each sample was 3 to 13 (average of 8) showing significant difference (Fig. 2). The ratio of contained eggs in each side of an egg capsule represented no significant difference showing an average of 50.2% on the left side and average 49.8% on the right side. The results from examining 706 sample fish with a minimum disc width of 63 cm to regulate seasonal catch limits show that 133 females contained egg capsules in their ovaries. The percentage of egg capsules appearing in April was 26.3%, May 32.1%, and June 26.5%. This indicates that spawning increased from April and peaked in May, which leads one to assume that the peak spawning of the mottle skate is from April to June (Table 2).

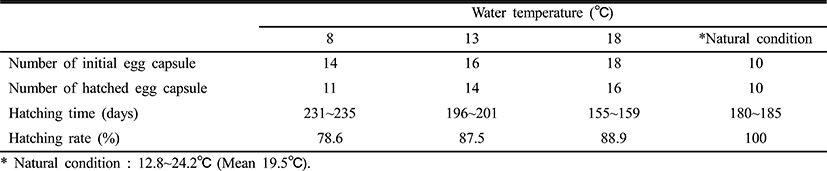

Hatching at 8°C water temperature took 231 to 235 days (an average of 233) showing the slowest process and the longest hatching period. It took 196 to 201 days (an average of 199) at 13°C, took 155 to 159 days (an average of 157) at 18°C and 180 to 185 days (an average of 183) at a natural water temperature from 12.8 to 24.2°C (an average of 19.5°C). Although the average temperature for natural water was higher than 18°C, the hatching was delayed and took longer since the natural water temperature at the early stage was low. The observation from the four different water temperature results in that the optimal hatching water temperature, considering hatching time, rate, and culture management is at 18°C (Table 3). Each experiment took five to six days from the fertilization until hatching.

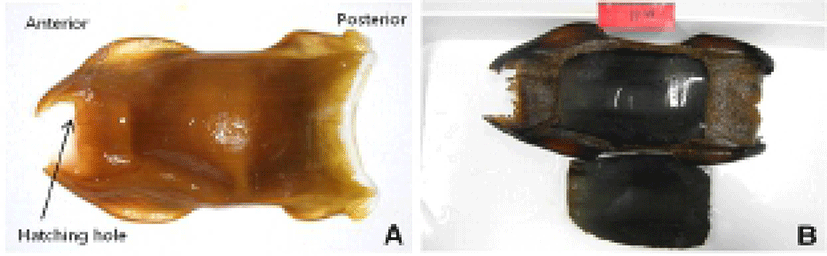

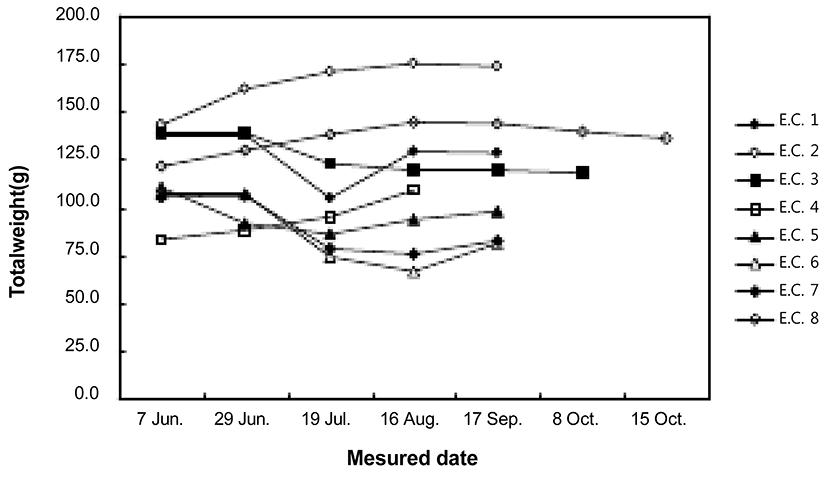

From observing eleven egg capsules in the incubator (Fig. 7) at the maintained water temperature of 18°C for the hatching experiment, five out of eleven capsules showed normal formation before hatching. During the experiment, we supplied sea water repeatedly through a respiratory fissure to control weight change in an egg capsule, from which we observed more capsules where the weight increased after initially decreasing than from the capsules where the weight increased (Fig. 5). The number of newly hatched larvae that went through the normal hatching from the five egg capsules was 4 to 5 respectively and the hatching rate was 100%. A portion of one side of the respiratory fissure on the anterior apron of the capsule opens and the eggs hatched out (Fig. 8). The hatched young mottled skates were 25% females and 75% males from the three capsules out of the five capsules and 60 to 80% females and 20 to 40% male from the other left two capsules. There were ten females (45.5%) and twelve males (54.5%) from the total of five egg capsules (Fig. 6).
The mottled skate is a native Korean species of big skate found along the coast of Heuksan-do and Daecheong-do, southwest of South Korea. It is one of the unique flavored food fish used in seafood stew and sashimi and commercially significant food fish. It inhabits shallow coastal waters of 30 to 200 m and it is cold water fish found in temperatures of 5 to 15°C (Jo et al., 2012). More research on its spawning and hatching should be conducted since its reproductive ecology has hardly studied. The mottled skate was originally classified as R. pulchra until it was renamed after Jeong's study (1999). As the relation of female gonad weight (Gw) to the body weight (Bw) was presented by Gw=51.203Bw–40.281(r2=0.5244), the gonad weight increase is followed by the increase in the body weight and body size rise corresponds to an egg number increase (Yeon et al., 1997). The GSI from the sample females was 5.4, peaking in April, and then decreased from May. When comparing to the previous data (Yeon et al., 1997; Jeong, 1999; Kim et al., 2005), it shows spawning peaks between April and June. However, the HSI was at its lowest point in April at 4.1, when the GSI was the highest. This indicates that the GSI and HSI are inversely correlated, like in other species such as damselfish (Chromis notatus) (Lee & Lee, 1987; Lee & Lee, 1988), yellowfin goby, Acanthogobius flavimanus (Park et al., 2005), and tongue sole, Cynoglossus semilaevis (Kang et al., 2012). The inverse correlation of HSI to GSI is inferred because during the oocyte development follicular cells secrete estradiol-17β, which is conjugated in the liver. This contributes to RNA synthesis in the hepatocyte secreting vitellogenin, which makes up the protein content of the yolk in cytoplasm of the oocyte (Aida et al., 1973).

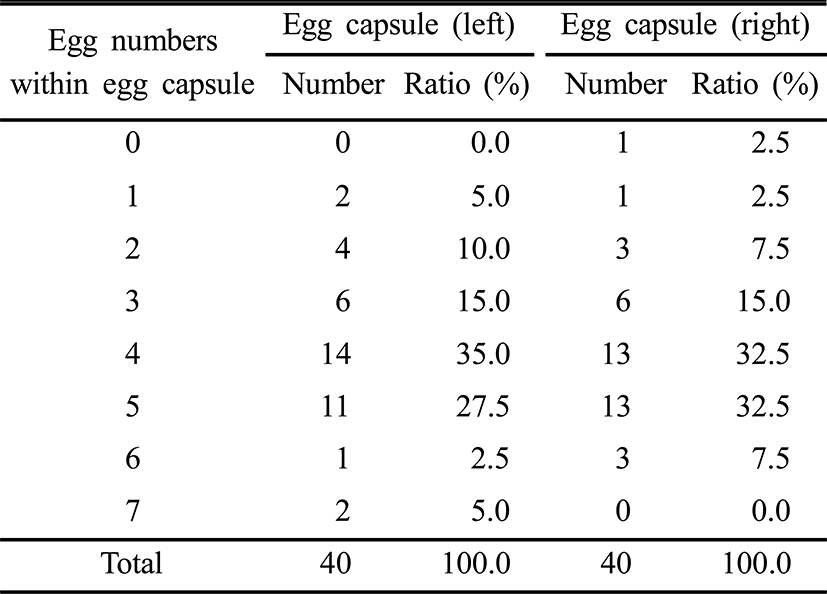

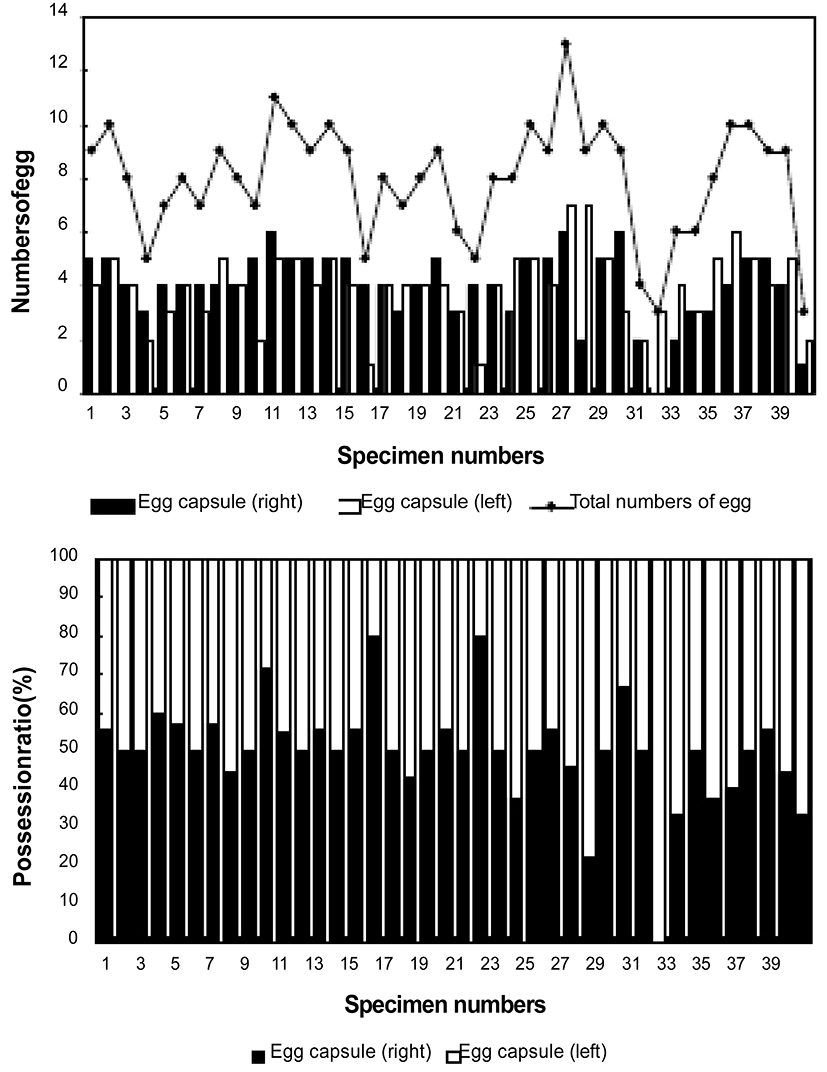

Comparing to other skates such as Okamejei kenojei (Jeong, 1999) and Hongeo koreana (Jeong & Kim, 2009), the egg capsule of Beringraja pulchra is larger and has distinguishing keels, surface structure, and weight; weighing 125.7 ± 25.4 g on average. Most of the egg capsules in the skates like H. koreana (Jeong & Kim, 2009) and Raja North Pacific (Ishihara, 1987; Ishihara et al., 2005) are covered by thin fibers. However, egg capsules' surface of the skate is rather rough and thick. Females laid a pair of egg capsules on both tracts developing egg yolks in the ovary. The previous reports showed that each egg capsule can contain up to nine eggs (Jo et al., 2010). In the present research, however, a maximum of seven eggs per egg capsule were observed. From examining forty mottled skates, the total number of eggs in both egg capsules was 159 on the left tract and 160 on the right tract representing no statistical difference, showing balanced reproductive tracts (Jo et al., 2010). From the survey of female mottled skates with a disc width of 63 cm for a year, we found the rate of appearing egg capsules peaked in May, which led us to believe the main spawning period is from April to June (26.3 to 32.1%). This result corresponded to the indirectly estimated GSI during the spawning period and to previous research (Yeon et al., 1997). Also, the mottled skate was shown to employ internal fertilization by mating since it deposits eggs after fertilization occurs. It shows that the follicle diameter increases after developing egg yolks in the ovaries (Yeon et al., 1997). A classification of the spawning behaviours of elasmobranches, like sharks and skates, are patterned on the spawning period; all year spawners, once or twice a year spawning, or spawns in a year or two year intervals. The Korean female skates are classified into the second pattern based on the period when the majority of its egg capsules appear (Yeon et al., 1997; Kim et al., 2005).
For the research, the incubated egg capsules were collected from the skate fish that were stored in tanks and aquariums since it is hard to get fertilized eggs from wild skates, and it is not known where they lay egg capsules (Luer & Gilbert, 1985; Luer et al., 2007). Studies on its life cycle and embryotic development have rarely been done, since it is difficult to observe the forming process from its thick and non transparent egg capsules. A few related studies have been done; a functional analysis of the embryotic development period (Pardue et al., 1995), a respiratory analysis of external gills (Pelster & Bemis, 1992), and caudal fin's function (Leonard et al., 1999). The egg capsules from the mottled skate (Beringraja pulchra) and clearnose skate (Raja eglanteria) show well developed respiratory fissures, so they supply embryos fresh water circulating freely from outside of the capsule and helps embryos breathe (Luer et al., 2007; Jo et al., 2010). The present research also observed a weight change according to fresh water circulation during the embryotic development in the capsules and some eggs became buoyant.
Hatching time of the skates varied depending on the water temperature. As for the Alaska skate, Bathyraja parmifera, it took the longest, 1,290 days at 4.4°C. In case of O. kenojei, it is known to take 137 days at 14.6°C (Hoff, 2008). This study showed that the mottled skate takes an average of 233 days at 8°C, an average of 199 days at 13°C, and an average of 157 days at 18°C. The results demonstrate that hatching occurs faster when the water temperature increases. The survival rate was 88.9% at 18°C, which concludes that the optimal water temperature for artificial hatching is 18°C. The mottled skate is known as a cold water species (Jo et al., 2012), but its hatching is optimal at 18°C. Clearnose skate, Raja eglanteria hatched in 85 days at 20°C, showing that higher water temperature shortens the hatching time. The embryotic survival was dependant on the water temperature variation showing that embryos did not develop where the water temperature was either below 12°C or above 25°C (Luer et al., 2007).

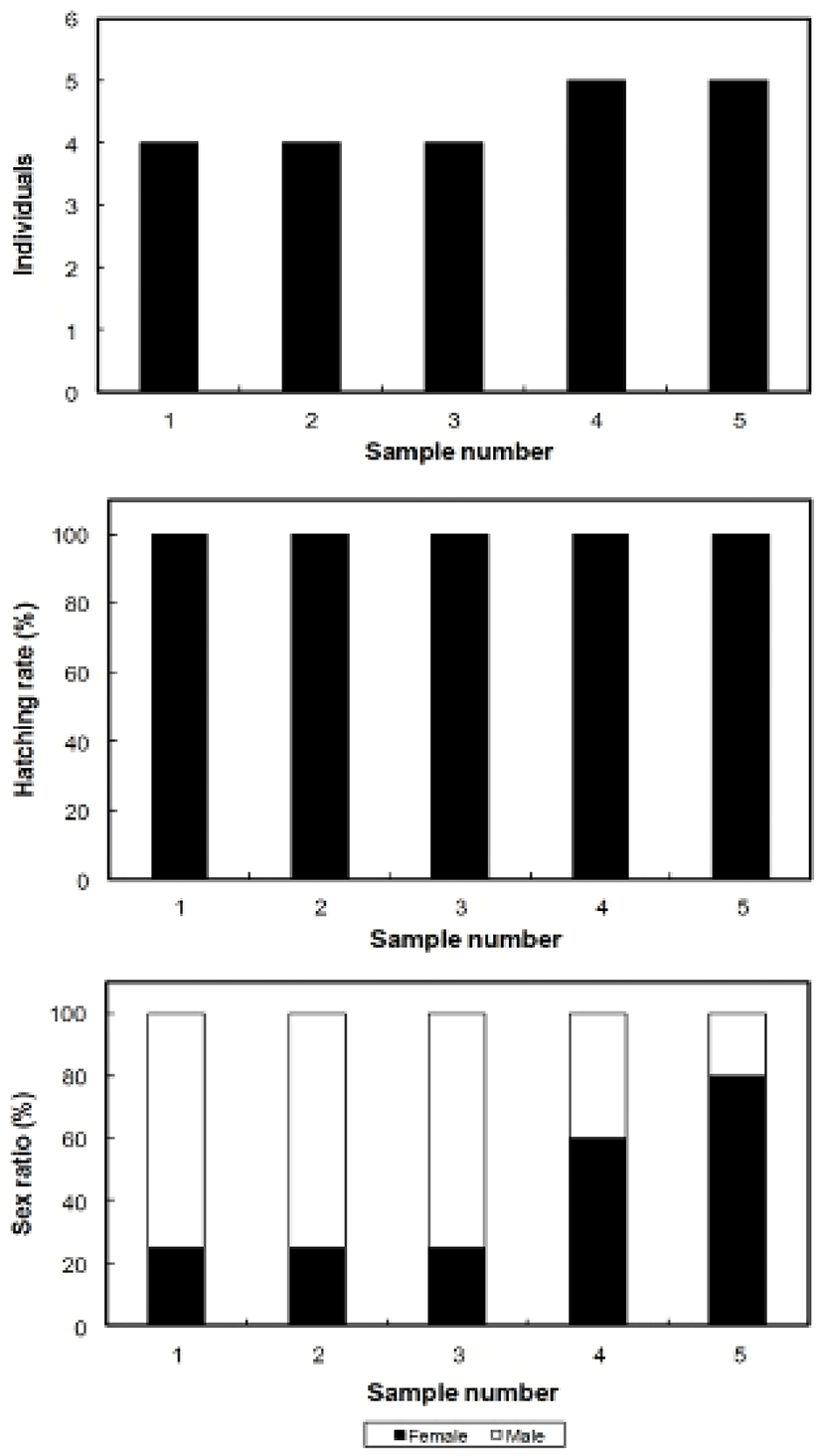

From the five egg capsules in the incubator, 22 larvae were artificially hatched with the sex ratio was 45.5% female and 54.5% male. Further studies on the sex ratio of hatched larvae, depending on the water temperature, are needed. In addition, techniques for artificial hatching for female mottled skate production should be developed since females grow faster and taste better. Artificially hatched eggs of oblong rockfish, Sebastes oblongus at 18°C were all females from the experiment (Kwak et al., 2006). Genetical factors and environmental factors determine physiological sex of vertebrate animals like reptiles and vertebrate fish (Pieau et al., 1994), and the water temperature is known to be one of the most influential factors (Lang & Andrews, 1994; Baras et al., 2001; King et al., 2013).
Since the results from this paper identified the egg capsule formation, the number of larvae in the egg capsule, main spawning period, hatching time at the various water temperature, and hatching rate, this study will provide fundamental data and information for artificial reproduction of the mottled skate.
